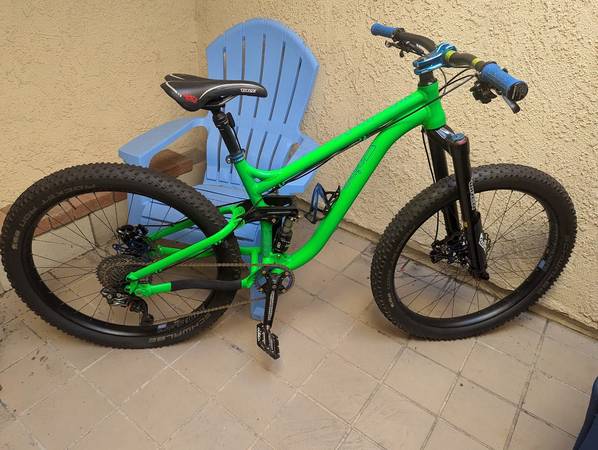

11/nine Epicyon Full Suspension Fat Tire Bike - $695 (Laguna Niguel)
QR Code Link to This Post
Here are some specs I found online:
Tubing: Heat treated AL7005 double butted front triangle
Swingarm: AL6061-T6 w. 177/12 dropouts 12mm thru axle
Headtube: tapered headtube 1 1/8″ – 1 1/2″ for IS41/IS52 headset
Dropouts: forged dropout with std QR hanger
Disc mount: post mount 180mm standard can run up to 203mm rotor with proper adapter
Rear axle: 177/12rear hub width
BB: 100mm BSA threaded shell
Drivetrain: single front ring systems only
Seat post: 30.9mm
WHEEL & TIRE COMPATIBILITY
26 x 55mm rims - 26x3.5", 3.8", 4.0", 4.25", 4.7" tires fit just fine
26 x 80mm rims - 26x3.5"-3.8", 4.0" 4.25" tires fit
27.5PLUS x 55mm rims - 2.8", 3.0", 3.25" tires fit just fine
29PLUS × 55mm rims - 3.0" tires fit just fine, (though the BB does get raised a little)
My upgrades
Totally upgraded with 1 x 11 speed.
XT Cassette
XTR shifter and rear derailleur
KMC 11 speed Ti gold chain
Race Face 170mm crankset with a 32 tooth chainring

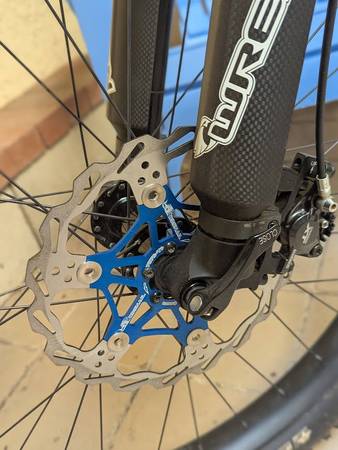

XT brakes using a 203mm front and 180mm rear floating rotors
Wren 120mm travel front fork that can be adjusted up to 140mm by swapping internal spacers
110mm rear travel using a Cane Creek DB inline shock

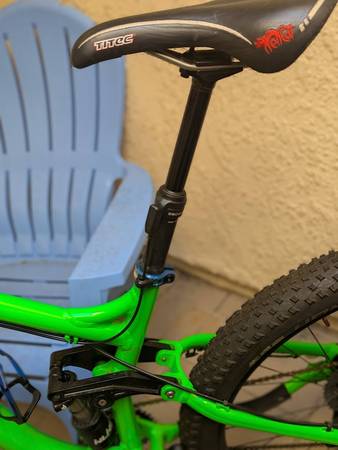

125mm Ascend Dropper post
Currently setup as a 27.5+ tubeless using hand built wheelset running 3.0 inch tires.
I have the original 26 inch x 55mm wide rims with 4.5 inch tires which could be be swapped if preferred upon discussion.
Meticulously maintained by bike mechanic owner.
The bike was in a stable of 5 bikes so was barely used.
Incredible for those beach rides as well. Great for your family adventures.
Awesome custom bike and would make an amazing Christmas gift or for any special occasion.
I can ship it if the buyer is willing to pay for the shipping.
The bike will be properly packed in a bike box from the shop I am working at.
Thanks for looking!
