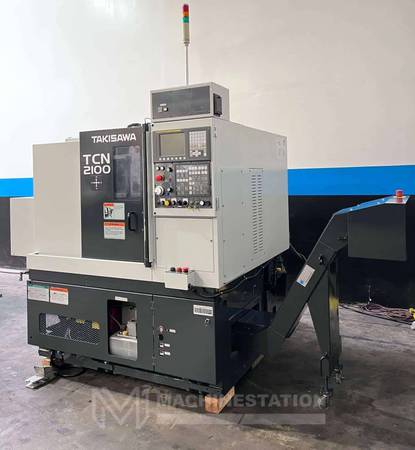

Takisawa TCN-2100 L3 CNC Turning Center – 2016 Lathe #112870 (Anaheim)

Takisawa TCN-2100 L3 CNC Turning Center – 2016 Lathe #112870 1

Takisawa TCN-2100 L3 CNC Turning Center – 2016 Lathe #112870 1 thumbnail

condition: good

make / manufacturer: Takisawa

model name / number: TCN-2100 L3

size / dimensions: 69″ x 60″ x 67″ High

QR Code Link to This Post

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Features:
Fanuc Oi-TF CNC Control
2,610 Hours Cutting Time
8-Station Automatic Turret
PCMCIA Card & USB Drive Interface
Rigid Tapping
Coolant System
Automatic Lubrication system
Made in Japan

Capacity:
Max Turning Diameter: 15.75″
Max Turning Length: 11.81″
Swing Over Bed: 15.75″
Max Bar Capacity: 2.00″

Travels:
X Axis Travel: 9.05″
Z Axis Travel: 13.5″
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 1181 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5″
Spindle Speed: 3200 RPM

Turret:
Turret Capacity: 8 Stations
Turning Tool Shank: 1″
Boring Bar Shank Diameter: 1.5″

Call or message us if you are interested.
