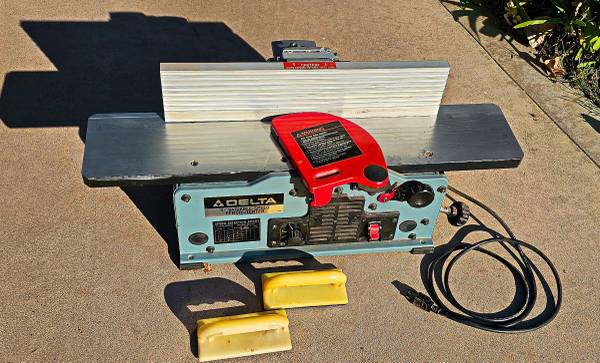

DELTA 37-070 6" Bench Top Jointer, 1 HP, Variable Speed - $210 (Anaheim)
condition:
good
make / manufacturer:
Delta
model name / number:
37-070
size / dimensions:
15.74 x 12 x 33.66 inches
QR Code Link to This Post
The DELTA 37-070 6" Bench Top Jointer is a popular woodworking machine designed for hobbyists and smaller workshops, though it has seen some use in professional settings for smaller tasks. It's known for its compact size, making it suitable for spaces where floor-standing jointers are impractical.
6-inch Capacity: Allows for jointing boards up to 6 inches wide. The maximum depth of cut is typically 1/8 inch.
1 HP Motor: Peak horsepower of 1-3/4 HP, and it operates on a 12 Amp, 120V, single-phase power supply.
Variable Speed Control: This is a notable feature, allowing users to adjust the cutterhead speed for different wood types and desired finishes. The no-load speed generally ranges from 6,000 to 11,000 RPM, with cuts per minute at 20,000 CPM.
Durable Construction: It typically features a cast iron table and fence support system, contributing to its stability and reduced vibration during operation. The overall unit weighs around 76 pounds.
Two-Knife Cutterhead: Equipped with an aluminum cutterhead that holds two high-speed steel (HSS) knives.

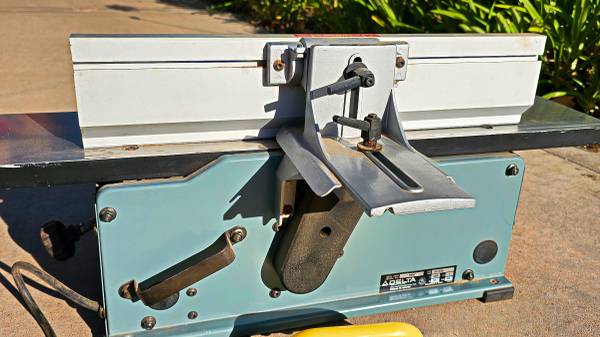

Adjustable Fence: The fence has adjustable positive stops at 90° and 45° (in and out) for accurate angle jointing.
Built-in Dust Blower: This helps efficiently eject wood chips and minimize clogs in the dust chute.
Push Blocks Included: Comes with push blocks for safe material handling.
Compact Design: Being a benchtop model, it's relatively small and portable, making it ideal for smaller shops or for those who need to move their tools.
Motor: 12 Amp, 120V, 1 Phase 1-3/4 HP peak
Cutterhead Speed: Variable, typically 6,000 - 11,000 RPM (20,000 CPM)
Cutterhead: Aluminum with two high-speed steel knives
Maximum Width of Cut: 6 inches
Maximum Depth of Cut: 1/8 inch
Table Dimensions: Approximately 6-1/4 inches deep x 28-1/2 inches long
Fence Dimensions: Approximately 4-5/16 inches high x 22-7/8 inches long
Weight: 76 lbs
Dimensions: 15.74 inches (width) x 12 inches (height) x 33.66 inches (depth)
