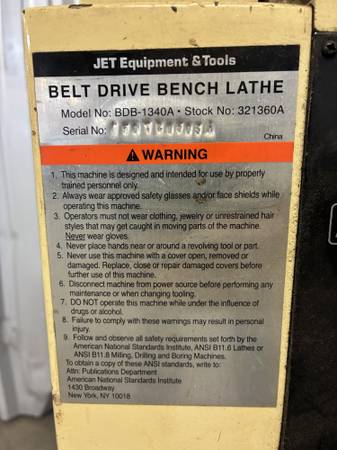

Jet 1340 Lathe - $2,000 (Anaheim)
QR Code Link to This Post
Asking price $2,000
6” Three Jaw Chuck
8” Four Jaw Chuck
Weighs 1200lbs.
Performance and capabilities
Swing over bed: 13 inches
Swing over cross slide: 7-25/32 inches
Swing through gap: 18-3/4 inches
Length of Gap (in.)
Distance between centers: 40 inches
Spindle bore: 1-3/8 inches
Spindle mount: D1-4
Spindle taper: MT-5 (with MT-3 sleeve)
Number of spindle speeds: 12
Spindle speed range: 60 - 1,240 RPM
Motor: 2 HP, 230V, 1 Phase
Number of longitudinal and cross feed rates: 40
Range of Longitudinal Feeds: .0018 - .0374 ipr
Range of Cross Feeds: .0012 - .0345 ipr
Number of inch threads: 40
Range of inch Threads (tpi): 4 - 112
Number of Metric Threads:27
Range of metric threads: 0.2 - 6
Max Tool Size (in.) 5/8 x 5/8
Compound Slide Travel (in.): 35
Width of Bed (in.): 7-3/8
Overall Dimensions (L x W x H): 71" x 32" 45" (with Stand)
