netapp fas3240 - $30 (lake forest)
aspan dr near boeing
QR Code Link to This Post
Unit and power cord only, nothing else
If this ad is up, it is available.
-
8 gig memory ram

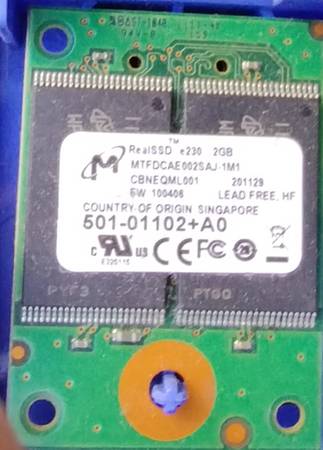

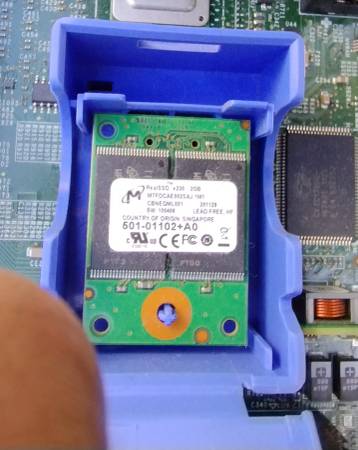

built in boot chip realssd 2gb
The FAS3240 is a midrange platform tailored to deliver the performance, expandability, and capacity scaling critical to the needs of your growing business. Fully Flash-ready systems support internal Flash, solid-state disk (SSDs), and advanced server cache, so you can achieve optimum performance while minimizing your total investment in Flash, which significantly reduces the total storage capacity you need. FAS3240 easily scales performance and capacity without disrupting operations bringing a new level of agility to midrange storage.
The FAS3240 provides up to 80% more I/O per second, enabling you to drive your business faster. You can easily boost performance by using the broad range of Flash products in the NetApp Virtual Storage Tier. FAS3240 can be configured with up to 2TB of high-speed Flash Cache PCIe cards or Flash Pools of SSDs. Flash Pool allows you to combine SSDs and HDDs; workloads get the performance benefits of SSDs with the capacity of HDDs.
The FAS3240 supports a maximum raw capacity of 1200TB and can utilize up to 600 drives. Supporting FC, FCoE, IP SAN (iSCSI), NFS, CIFS, HTTP, FTP networking protocols, the FAS3240 can scale out for any enterprise environment while utilizing Data ONTAP 8.
specs from the internet for netapp fas3240 may vary slightly from the unit
FAS3240 Technical Specifications
ACTIVE-ACTIVE (HA) DUAL CONTROLLER SPECIFICATIONS
Controller Form Factor Dual enclosure HA; two controllers in two 3U chassis, total of 6U
Memory 16GB
Max Flash Cache 1TB
PCIe Expansion Slots 12
Storage Networking Supported FC, FCoE, IP SAN (iSCSI), NFS, CIFS, HTTP, FTP
OS Version Data ONTAP 8
Operating Systems Supported Windows 2000, Windows Server 2003, Windows Server 2008, Windows XP, Linux, Sun Solaris, AIX, HP-UX, Mac OS, Vmware, ESX
Chassis Height 5.12"
Chassis Width 17.60"
Chassis Depth 23.90"
Rack Units (Single/HA) 3U/6U (with IOXM)
3U/3U (without IOXM)
Operating Temperature Range 50°F to 104°F
Storage Temperature Range -40° to 158°F
Input Power Voltage 100v to 120v, 200v to 240v
Processor (Single) 1x 64-bit 4-Core 2.33Ghz
Memory (Single/HA) 8GB/16GB
NVRAM (Single) 1GB (NVMEM)
Ethernet Ports (Single) 2x RJ45 (1Gbps)
Fibre Channel Ports (Single) 2x SFP (4Gbps)
UTA2 Ports (Single) N/A
Expansion Slots (Single) 2x PCIe (without IOXM)
6x PCIe (with IOXM)
SAS Ports (Single) 2x QSFP (6Gbps)
Max Back-End FC Loops (HA) 26 (with IOXM)
5 (without IOXM)
Min Version of Data ONTAP 7 7.3.5
Min Version of Data ONTAP 8 (both modes) 8.0.1, 8.1, 8.2RC1, 8.3RC1
Max Version of Data ONTAP 8 (both modes) 8.0.5, 8.1.4, 8.2.4, 8.3.2RC1
Ask about our NetApp Disk Shelves! We can create cus
What is NetApp Fabric Attached Storage (FAS)? NetApp FAS is a cloud unified storage platform powered by NetApp ONTAP data management software. The storage systems feature integrated data protection, robust data management and built-in storage efficiency to offer a balance of performance and capacity.
