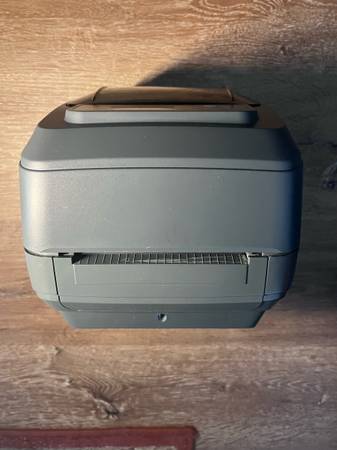

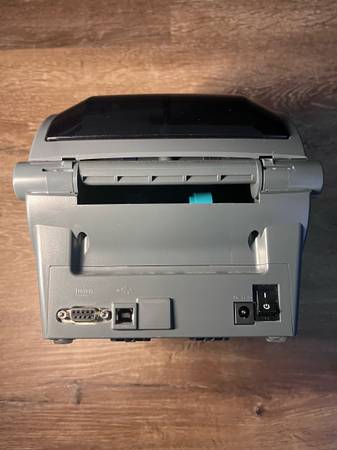

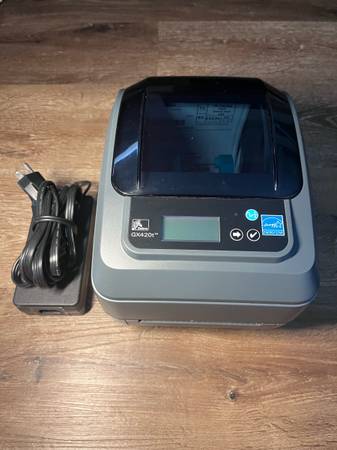

Zebra GX420t Thermal Desktop Printer (#1) - $100 (Huntington Beach)
QR Code Link to This Post
These items have been tested, factory reset, and are in good working condition. May show some minor scuffs and scratches from normal use.
Sale includes:
-Printer

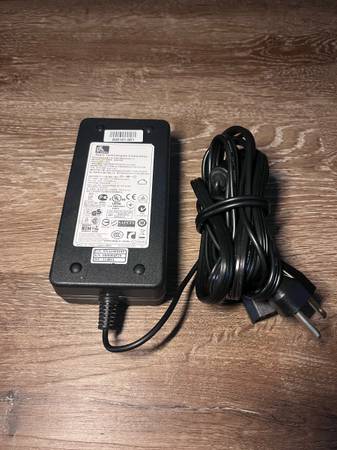

-Power Supply (original)
-USB Cable
$100 firm
Nine4nine - five4five - three2threethree
(#1)
Description and Specifications:
Zebra GX420t
The direct thermal Zebra GX420t is extra compact to fit in congested workspaces and produces 203 dpi print resolution at speeds up to 6 ips. The GX420t features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel. Increase your media choices and application flexibility with cutter, peeler, and adjustable black line sensor options.
Features of the Zebra GX420t
Model GX420t
InterfacesSerial, USB, Wi-Fi
Print MethodDirect Thermal and Thermal Transfer
Standard Features
Print speed: up to 4" (102 mm) per second
Print method: direct thermal/thermal transfer
EPL and ZPL programming languages standard
More Standard Features
OpenACCESS design for easy media loading
Quick and easy ribbon loading system
Dual-wall reinforced plastic construction
32 bit RISC processor
XML-enabled printing
Printer Specifications
Resolution: 300 dpi (12 dots/mm)
Memory
Standard: 8 MB SDRAM (3 MB available to user); 4 MB Flash (1.5 MB available to user)
Optional: 64 MB Flash (68 MB total) with real time clock (65.5 MB available to user)
Print width: 4.09" (104 mm)
Print length: 39" (991 mm)
Print speed: 4" (102 mm)/sec
Media sensors: Reflective, Transmissive
Media Characteristics
Maximum label and liner width: 4.25" (108 mm)
Minimum label and liner width: 0.75" (19 mm)
Maximum label and liner length: 0.38" (9.7 mm) to 39" (991 mm)
Maximum roll diameter: 5" (127 mm)
Core diameter: 0.5" (12.7 mm), 1.0" (25.4 mm), 1.5" (38.1)
Media thickness: 0.003" (0.08 mm) to 0.0075" (0.20 mm)
Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock
Ribbon Characteristics
Outside diameter: 1.34" (34 mm)
Standard length: 244' (74 m)
Ratio: 1:1
Ribbon width
Recommended to be at least as wide as media
1.33" (33.8 mm) to 4.3" (110 mm)
ID Core: 0.5" (12.7 mm)
Operating Characteristics
Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (41° C)
Thermal transfer DT: Operating temperature: 40° F (5° C) to 105° F (41° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 10-90% non-condensing
Storage humidity: 5-95% non-condensing
Electrical: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz
Agency approvals
FCC Part 15
Subpart 15
VCCI
C-Tick
EN55022 Class-B
EN6100-3-2
EN6100-3-3
EN55024
CCC
CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
TUV NRTL
IRAM
NOM
AAMI
Physical Characteristics
Width: 7.6" (194 mm)
Height: 7.5" (191 mm)
Depth: 10" (254 mm)
Weight: 4.6 lbs (2.1 kg)
Shipping weight: 9.1 lbs (4.1 kg)
Orientation Center
