1966 Fender Deluxe - $3,200 (San Juan Capistrano)

condition: good

make / manufacturer: Fender

model name / number: Deluxe amplifier

QR Code Link to This Post

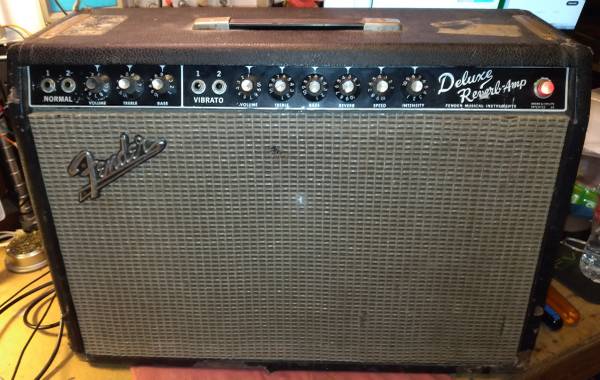

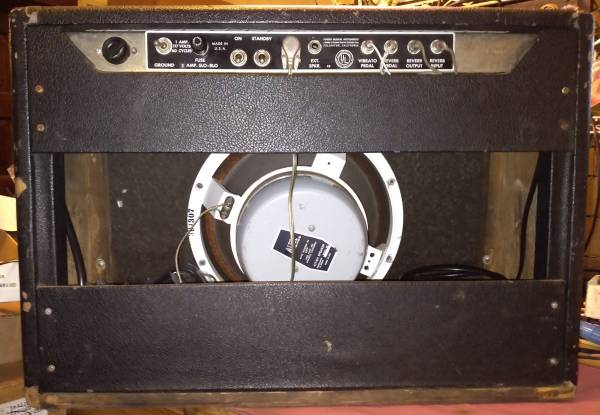

I'm selling my 1966 Fender Deluxe amp. My parents bought this for me new when I was taking guitar lessons - it has a lot of sentimental value. I played it on the road for a few years so it shows some wear but still sounds great. In the 70's I put in an Altec speaker 417-BH speaker with an aluminum cone. I played this on a gig last year, it's tough to see it go!

I had it refurbished by Marty at Futara Electronics in Orange. His appraisal is below.

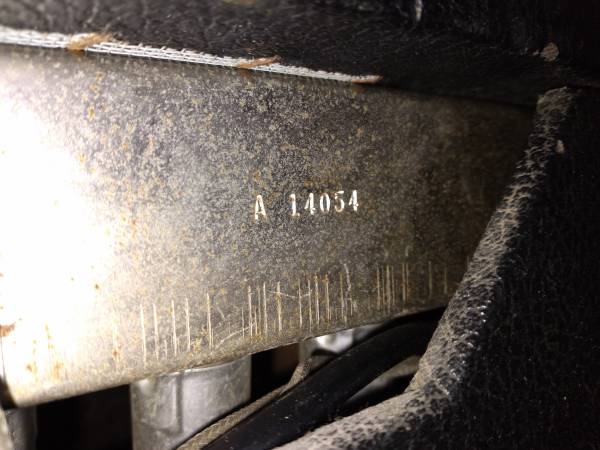

Model: Fender Deluxe Reverb 1966 AB763 S#A14054 (info was gathered by the serial number alone as there is no tube chart on the inside side panel.

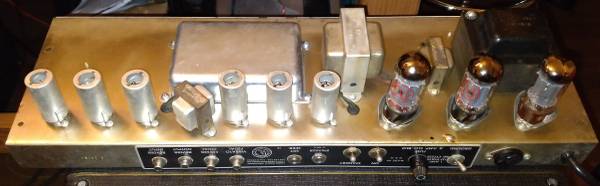

Transformers:
Power Transformer : Original 025130 1966 Schumacher
Output Transformer : Original 125A1A 1965 Schumacher
Choke Coil : Original 125C3A 1966 Schumacher
Reverb Transformer : Original 022921 1966 SchumacherFilter Capacitors:
Main High Tension Filter Capacitors : Not Original - replaced with IC (Illinois Capacitor) type.
Bias Capacitor : Not Original - replaced with SHOEI type.

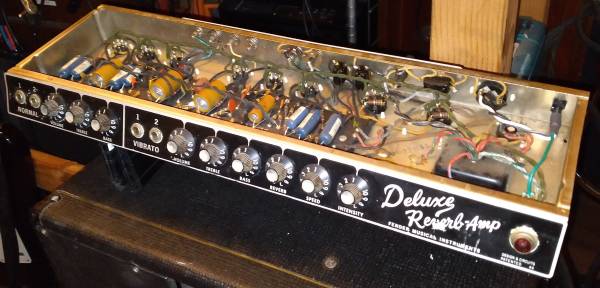

Eyelet Board:
ALL eyelet board bypass, coupling and disc capacitors ARE original (AJAX, Mallory and SK types). ALL Carbon Composition Resistors ARE original.
Hum Balance Modification with two 100ohm metal film resistors is installed.

External Hardware:
Main High Tension Filter Capacitor "Dog House" Cover : Not Original - Replica. Fuse Cap is not original.AC Cable is not original - replaced with grounded type - "death cap" was removed as well. (both performed for safety).

ALL jacks, switches, potentiometers, knobs, and tube sockets ARE original. The reverb footswitch is new, and the reverb tank has been replaced.

Cash only. Local pickup only.
