Atlas 2-Post Car Lift, 9K Lbs. Capacity, Floor Baseplate, $3799.00 - $3,799 (Irvine)
QR Code Link to This Post
$3,799.00 includes installation, Tax and delivery.
We’re an authorized dealer with Atlas Equipment. You can call Atlas directly at show contact info , to verify that me, Alfredo Contreras, with The Alan Group Corp is an authorized dealer.
The price includes delivery, installation and tax, please call today at show contact info . Only for locations that are near the Los Angeles, Orange County areas, and certain parts of the Inland Empire. We need about 3-5 days business days to schedule the installation. We accept all credit cards, PayPal, COD with a quarter deposit up front.
Fluid is not included. Neither is electrical work.
To view this lift on our website, please visit us here:
Features and Benefits: https://www.garageautoequipment.com/Atlas-XH-TPF-9-FPD-p/xh-tpf-9-fpd.htm
Features and Benefits:
9,000 lb. Capacity
Baseplate, Open Top design
Overall Height: 111 1/2? (9? 3 1/2")

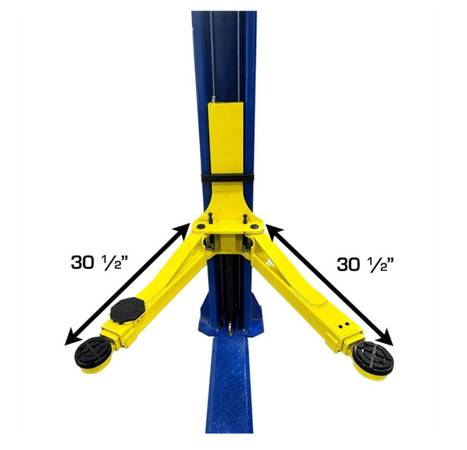

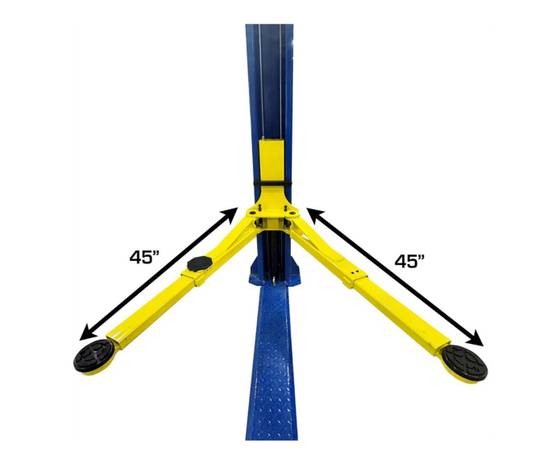

Symmetric Arms
Automatic Arm Restraints
Dual-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System
Adjustable Screw-Up Adapters Included
Free 4 Piece Truck Adapter Set

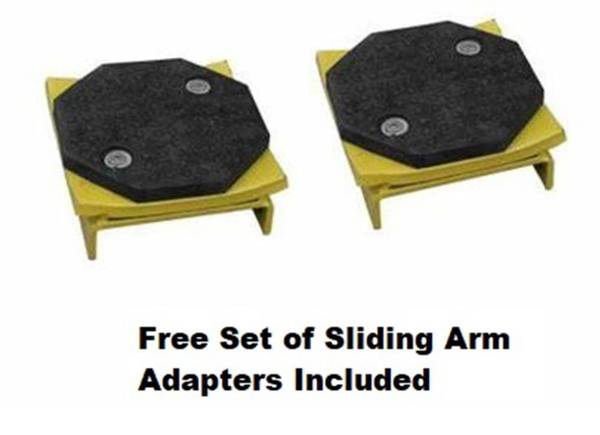

Free set of Sliding Arm Adapters
Mounting Hardware Included
Shipping Weight: 1,400 lbs.
2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
This part number FREIGHT PREPAID

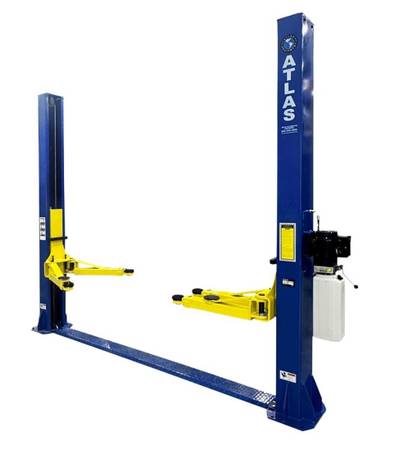

The light duty Atlas® TPF-9 lift is an economically designed baseplate 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for “Mr. Homeowner” or small commercial shops looking to service cars, SUVs and light duty trucks. The TPF-9 has an overall height under 9 feet 4 inches. The Atlas® TPF-9 has symmetric columns and symmetric arms. The low pad height will allow the operator to position the lift arms under most small cars (with low pick-up points) and heavier pickup trucks. The Atlas® TPF-9 two post “chain over roller” lifts have a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.
Specifications:
Capacity 9,000 LB.
Overall Height 111 1/2” (9' 3 1/2")
Overall Floor Width 133 1/2" (11 1 1/2")
Maximum Lift Height (Without Adapters) 76 1/2"
Maximum Lift Height (With Adapters) 79 1/2"
Minimum Arm Height 4"
Inside Column 111 3/8” (9 2 3/8”)
Drive Thru 98 1/2” (8 2 1/2”)
Column Size 7 1/4" x 11"
Column Thickness of Steel 5mm
Base Of Lift 14 1/4" x 18"
Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 1,400 LBS.
Adapter Heights 4 Each 2.75"
Arm Hole/Adapter Peg Size 2”
Requires a minimum of 4" of concrete with a 3000 psi. rating
