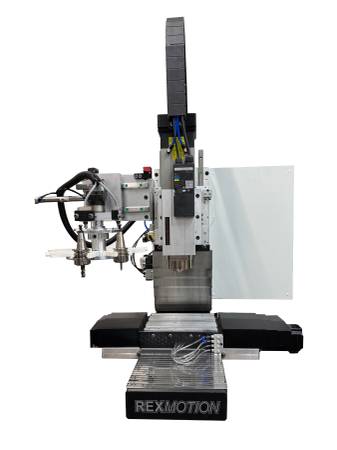

CNC desktop cnc mini mill with Spindle - 14 x 10 x 10 , ATC - $8,595 (Garden Grove)
condition:
like new
make / manufacturer:
Rexmotion
model name / number:
Mini Mill
size / dimensions:
10x10x10
QR Code Link to This Post
Frame, Linear Bearings, Ball screw, Motor, Driver, ATC Spindle, MASSO Controller, Umbrella 8 ATC, and Ball screw cover.
** Some Assembly Required ** This machine is 95% built. All repairs are on site at Rexmotion facility in California. The buyer must be willing to troubleshoot and make all repairs on their own with the assistance of Rexmotion.
** 6-8 weeks lead time **
The billet aluminum parts are designed and machined in Southern California. MADE in the USA!
This item is great for those who want to add on their own particular parts but do not want to make their own cnc mill frame. These parts will allow for you to make your own build with ease and it will look very nice when done compared to other home made design suggestions out there.
The frame is cnc milled from 6061-T6 aluminum.
New Condition
Parts that come with this sale:
20mm linear rails, cap screws. (installed)
20mm Square bearings with no flange. (installed)
Motor mount frame Designed to fit Nema 34, cap screws. (installed)
16mm Ball screws. 1605 for accuracy compared to 1610. (installed)
Grease plumbing. (installed)
Grease manifold with grease nipples. (installed)
3x Couplers with .500" ID or 14mm to motor shaft. (installed)
Home switches for X, Y, and Z. (installed)
Spindle used as Full Auto Tool Change Configuration.
ISO30
24K Max RPM
4.5KW
220V input single phase or 3 Phase
Air requirements of 115 PSI
Includes 8 SIO30 Tool Holder
G3 Non-touch Controller with monitor and keyboard
MASSO G3 (non-touch)
Includes a 19" Monitor
⦁ Standalone, PC-less operation
⦁ 5-axis motion control
⦁ Tools & Workoffsets
⦁ Conversational routines
⦁ Basic start/stop inputs and homing
⦁ Real-time DRO (digital readout) and job status display
⦁ Intuitive touchscreen interface or standard display depending on model
⦁ Easy software updates with no hardware swaps
⦁ Robust reliability with solid-state design
⦁ myWorkshop account for software downloads and update management Extensive documentation
Control Box, Motors, and Drivers
Includes an enclosure for the drivers, power supply, and motor driver. (installed)
12nm closed loop Nema 34 Motors for X, Y, and Z axis. (installed)
Drivers to match the motors. 3M cables. (installed)
X and Y 100 ipm - Direct Coupling to Ball screws
Z 50 ipm- Direct Coupling to Ball screws
Frame (Design and made in the USA):
Aluminum 6061-T6 Billet
Y Base: Billet at 10" x 28" x 1.50"
X Base: Billet at 8" x 23" x 1.5"
Table: Billet at 8" x 10.5" x 1.5"
Z Front: Billet at 10" x 30.5" x 1.5"
Z Sides Support 5" x 30.5 x 0.625"
CNC Nema 34 Mount
Travel:
14" x 10 x 10" With Bearing Covers (X,Y, Z)
Footprint:
41"x36"x45"
Bearing Covers (way Covers):
Sides X: 3D printed ABS
Front Y: Steel on Top, cloth on sides.
Back Y: 3D printed ABS
Front Z: Steel on 3 sides
Bearing
20mm linear rails
16mm Ball screws, Provides 0.00035" resolution.
Warranty:
1 Year warranty.
All repairs are on site at Rexmotion facility in California. The buyer must be willing to troubleshoot and make all repairs on their own with the assistance of Rexmotion.
Support:
USA Based local support, (Southern California)
Shipping Weight:
500 to 1000 LBS - depends on options
Woodend crate
Rough Estimate. $700 West USA, $950 Med USA, $1350 South East , $1550 North East USA.
Please contact us, we can configure this item for you.
