Agilent 1683AD 34 Channels Deep Memory Logic Analyzer 4M 800Mhz /w pod - $1,599 (Irvine)
QR Code Link to This Post
Note that this one is the 'AD' version, where 'D' stands for Deep Memory, which makes it the high end version of the series.
Option 2M

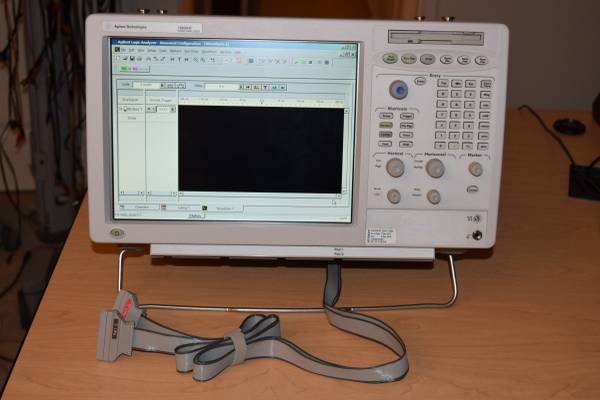

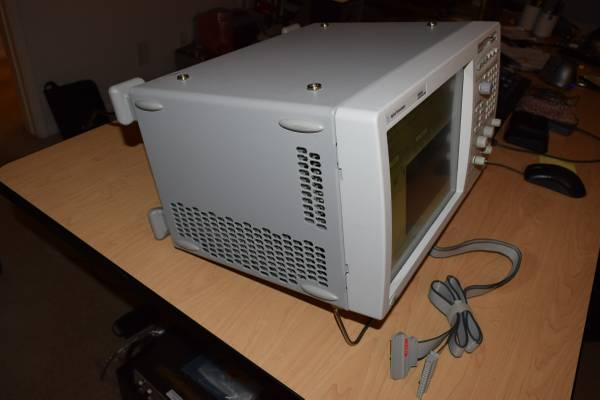

As in the pictures, the unit is calibrated around a year ago and the calibration sticker just expired. It's in pristine cosmetic (as pictured) and functional condition.
Standard accessories included:

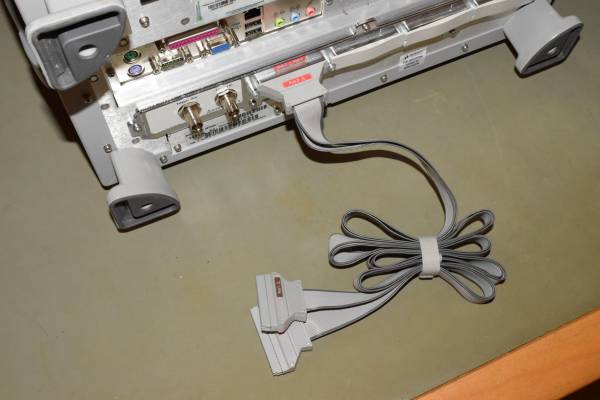

Three 16715-61601 probe (ribbon) cables installed. They are often missing with used logic analyzers and are extremely hard to find. I had to buy a scrap unit just to get those cables.
Additional accessories included (normally sold separately for Agilent) so it's ready to use:
2 Logic Pods (2 for E5383A each ribbon x 1 ribbons).
36 Grabbers
5 Ground Jumpers
If you don't need these additional accessories, contact me and I'll give you a discount.
I reserve the right to have the unit set up on Windows 2000/XP depending on motherboard availability at the time. The logic analyzer works well either way. If for some reason you specifically need Windows XP on it, just let me know and I'll make it happen.
-------------------------------------------------
Copied from Keysight:
Logic Analyzer Configuration
34-channel portable logic analyzer
800 MHz / 400 MHz (half/full-channel) conventional timing, 4 M / 2 M memory depth
200 MHz transitional timing, 1 M memory depth
200 MHz state analysis, 1 M memory depth
Configuration Considerations
Compatible with 40-pin logic analyzer probes. Probes are ordered separately.
