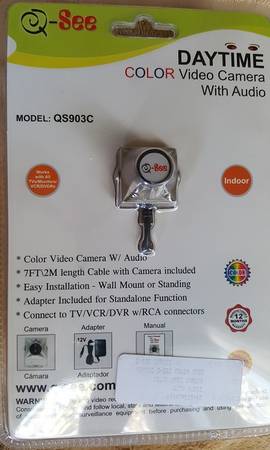

Q-See Color CMOS Camera with Audio QS903C - $15 (Fullerton)
condition:
new
make / manufacturer:
Q-See
model name / number:
QS903C CMOS Camera
size / dimensions:
8.5 mm
QR Code Link to This Post
Color video camera with Audio -
Device Type - CCTV camera
Optical Sensor Size - 1/3"
Manufacturer - Digital Peripheral Solutions
CAMERA
Video Format - NTSC
Horizontal Resolution (TV Lines) - 380
Minimum Illumination - 1.5 lux - color - F2.0
LENS CONSTRUCTION
Focal Length - 6 mm
Lens Iris - F/2.0
VIDEO INPUT
Camera Mechanical Design - fixed
Color or B&W - color
Shutter Speed (Min) - 1/50 sec
Shutter Speed (Max) - 1/6000 sec
Audio Support - Yes
Audio Support Features - built-in microphone
INTERFACES
Video - composite video
VIDEO INPUT DEVICE
Type - Color - fixed
ENVIRONMENTAL PARAMETERS
Min Operating Temperature - -4 °F
Max Operating Temperature - 131 °F
INTERFACE REQUIRED
Connector Type - RCA, RCA
LENS SYSTEM
Lens Aperture - f/2.0
Min Focal Length - 6 mm
OPTICAL SENSOR
Optical Sensor Type - CMOS
Sensor Size - 1/3"
Sensor Size (metric) - 8.5 mm ( 1/3" )
CABLE DETAILS
Type - composite video cable
Form Factor - external
Length - 0.1 in
CCTV CAMERA SENSITIVITY
Minimum Illumination (lux) - 1.5
Mode - color
F-number - F2.0
DIMENSIONS & WEIGHT
Width - 1.5 in
Depth - 1.3 in
Height - 1.2 in
Weight - 3.49 oz
