Classes: Class 3(Ebikes can go up to 28mph with pedal assistance)
Max Speed: 28MPH by pedal, 20MPH by throttle
Range: 60+ Mile by Pedal; 40+ Mile by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
Frame: 6061 Aluminium, Removable Battery, Internal Routing
Fork: Hydralic Suspension Fork
Rim Material: Aluminum Rim Size: 26 x 3.0
Front Wheel Spokes: 13K x 243
Rear Wheel Spokes: 12K x 198
Tire: Kenda Fat Tires Tire Size: 26" x 4.0"
Battery: 48V 20Ah, 960Wh, LG 21700 Cells
Charger: Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
Motor: BAFANG Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80NM
Controller: 48V 25A Peak

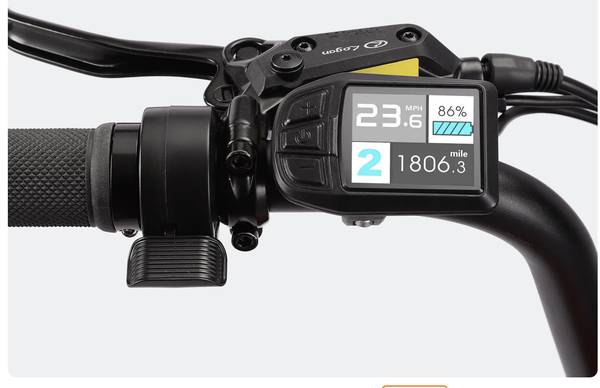

Display: Multifunctional Color-Screen Display
Pedal Assist: Torque Sensor
Throttle: Thumb Throttle
Front Light: 48V 10W LED Light
Shifter: Shimano, 7-Speed Rear
Derailleur: Shimano, Long Cage
Crank & Chainring: 52T, 170mm Alloy Crank
Freewheel: 7-Speed
Pedal: Alloy Platform Pedals
Saddle: Comfortable Wide Saddle
Handlebar: Alloy, 750mm width
Grips: Nylon Lock-on
Brake: Front & Rear Hydraulic Disc Brakes
Brake rotor: 180mm, 1.9mm thick
Kickstand: Side Kickstand
Seatpost: Forged Alloy, 30.4*350mm
Stem: Bar bore: 31.8mm,
Clamp I.D.: 28.6mm,
HEIGHT: 40mm, RISE: 0° Handlebar: Aluminum 31.8mm, Width 730mm
Net Weight: 36.5kg(80.5lb)
Gross Weight: 46kg(101.4lb)
Battery Weight: 5kg(11lb)
Weight limit: 150kg(330lb) (Payload)
Product Size: 1985x1230x750mm
Packing Size: 1675x325x880mm
Warranty: 2 Year
