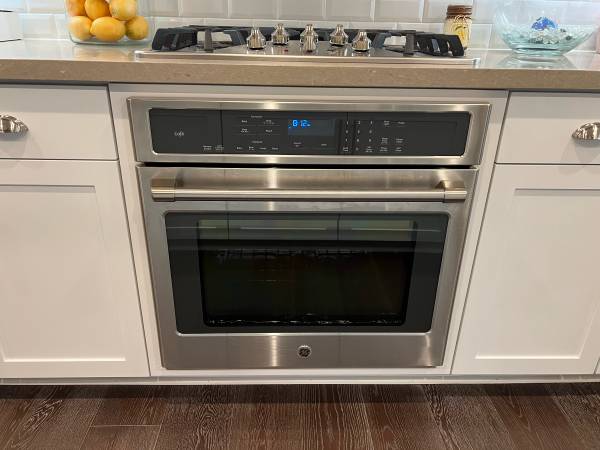

GE Cafe Series 30" Built-In Single Convection Wall Oven
-- WiFi powered by SmartHQ - Wirelessly control oven functions from your smartphone
True European Convection with Direct Air - Bakes evenly as warm air blows from the top in and around bakeware
-- Ten-pass dual broil element - Large and small dishes brown evenly with two, full-coverage elements
-- Ten-pass bake element - Even baking is assured with heat that covers more surface area
Notification lighting
POWER / RATINGS
Amp Rating at 208V 20
Amp Rating at 240V 20
Bake Wattage 2850W
Broiler Wattage 4300W; Dual Element
Convection Wattage 2400W
KW Rating at 208V 3.4
KW Rating at 240V 4.5
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 184 lb
Cabinet Width 30 in
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 27-5/16 x 23-1/2
Net Weight 166 lb
Oven Interior Dimensions (W x H x D) (in.) 25 x 17-3/8 x 20-1/4
Overall Depth 27 1/8 in
Overall Height 28 5/8 in
-------------------------------------------------------------------------------

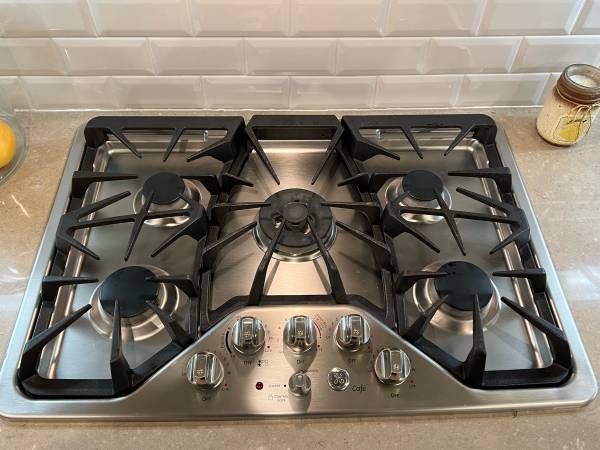

GE Café Series 30" 5 Burner Cooktop Built-In Gas Cooktop
FEATURES
Burner - Center 20,000 BTU Tri-ring
Burner - Left Front 9,100 BTU
Burner - Left Rear 5,000 BTU Precise Simmer
Burner - Right Front 9,100 BTU
Burner - Right Rear 5,000 BTU Precise Simmer
Control Location Front Center
Control Type Manual
Simmer (1-9) Hi
Cooktop Burner Grate Features Continuous Grates
Dishwasher Safe
Matte Black
Self-Clean
Cooktop Burner Grate Material Heavy Cast
Cooktop Burner Type 5 Sealed
Cooktop Control Features Child Lock
Griddle Control
Cooktop Surface Deep Stainless Steel
Dishwasher Safe Knobs Yes
Fuel Type Natural Gas (factory set)
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 44 lb
Cabinet Width 30 in
Cutout Depth (in) 19-5/8
Cutout Width (in) 28-1/2
Net Weight 39 lb
Overall Depth 21 in
Overall Height 3 1/4 in
Overall Width 30 in
-------------------------------------------------------------------------------

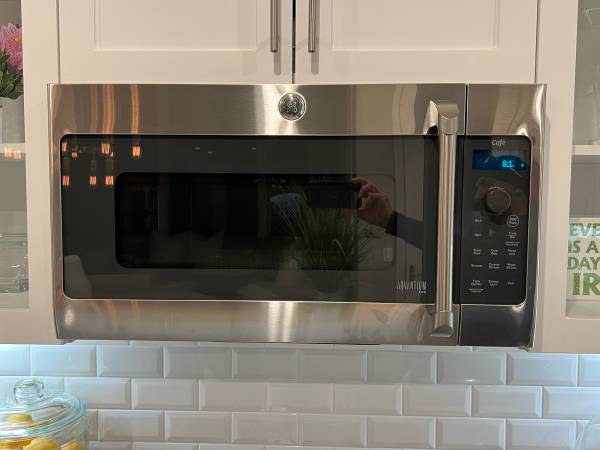

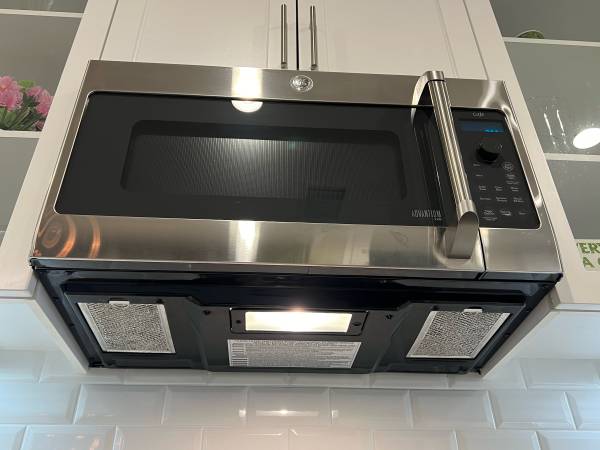

Advantium Oven-Hood Microwave Combination Over the Range Unit - GE CAFE CSA1201
-- Halogen heat - Skip the preheating with nearly instantaneous halogen heat
-- Over 175 preprogrammed menu selections - Preprogrammed selections make meals easy
-- Custom Recipe Saver - Conveniently store cooking instructions for up to 30 different recipes
-- Speedcook oven (120V) - Enjoy oven-quality results two- to four- times faster than a conventional oven
-- Multiple cooking functions - Expand your cooking versatility with an all in one oven
-- Three-speed, 300-CFM venting system - Quickly moves smoke and steam up from the cooktop
Microwave Watts (IEC-705) 925 W
Oven Interior Interior Oven Light
Power Levels 1-10
Program Cooking Over 175 Programmed Menu Selections
Style Over-The-Range
Turntable Glass
Turntable Size 13 5/8 in
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 94 lb
Cabinet Width 30 in
Cavity (W x H x D) 21-5/9 x 9-2/5 x 14-1/4
Net Weight 86 lb
Overall Depth 15 1/2 in
Overall Height 16 1/4 in
Overall Width 30 in
